Our Products
Shrink Wrapper
Description
ShrinkMate

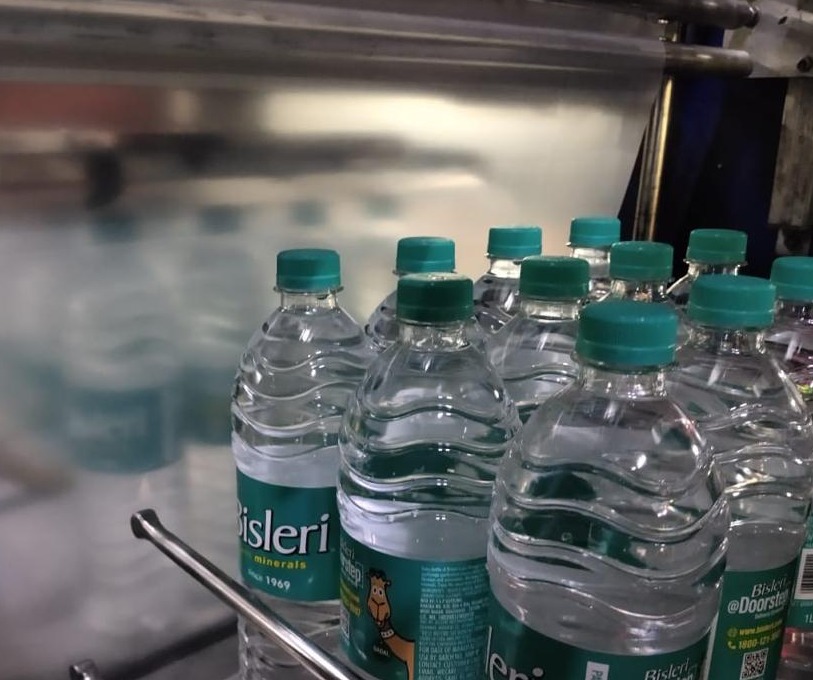

This machine is used to wrap a matrix of bottles into a polymer plastic film which is then heated to shrink fit the pack. The bottles are lined up on the conveyor and arranged into the matrix required by the help of sensors and actuators. Then this matrix is pushed in between two membranes from top and bottom and then cut and passed through a heating tunnel. The Unique thermal passage with 2 sets of centrifugal thermal air circulation system has an equal heat distribution with beautiful and secure shrinkage effect and the enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported. These are available as:
- Low Speed
- High Speed
- ShrinkMate
- ShrinkMate-Pro
FEATURES
- Programmable logical controllers.
- Comprehensible and user-friendly HMI.
- 3-level Password protection.
- Advanced constant temperature membrane heat binding technology provides clear and secure seal.
- The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.
- Versatility in running many bottle formats and sizes on same machine. Capable of handling rounds, cylinders, jars, ovals, squares, rectangles, trigger sprays and other odd shaped bottles.
- Machine designed entirely with stainless steel.
- Floor level access to all machine parts.
- Manpower Saving: needs only 2 persons to operate.
- Easy control and low operating cost.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH

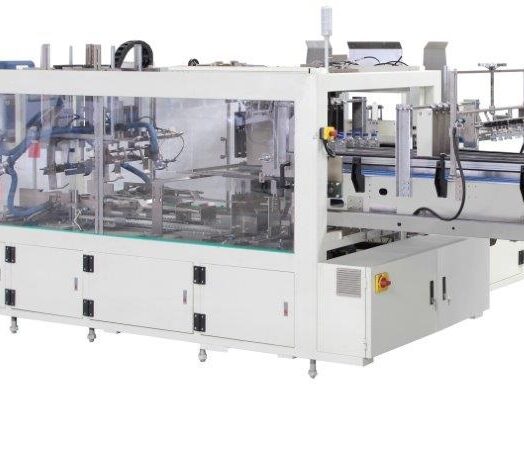

Tray Packer
Tray Packer
FEATURES
- Specially designed for the full automatic packaging production line of beer, pure water, fruit juice, dairy products, etc.
- With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cutting, shrinking, cooling and shaping etc.
- Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.
- The quick seal cooling structure guarantees that the seal has a higher strength even if under high-speed production condition.
- Equipped with PLC automatic program circulation control with stable and reliable performance.
- The original imported guide bar cylinder guarantees correct operation and durable operation.
- The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss.
- All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
- Unique thermal passage with centrifugal thermal air circulation system that has an equal heat
OUTPUT
Upto 24000 BPH
Description

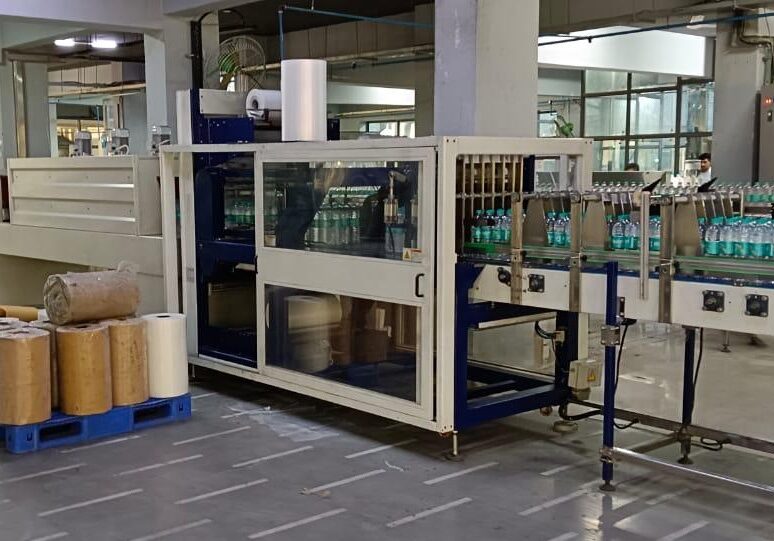

The machine is designed for tray packing cum shrink wrapping, suitable for use on any kinds of size of cans (bottles) such as PET, PE, Tetra pack, it’s easy to change the mold and do not need other machines. This machine shapes the trays automatically and closes their bottom flap with hot melt. Each individual machine parts in terms of user-friendliness and stability when it comes to feed and changeover.
Description
The machine is designed for tray packing cum shrink wrapping, suitable for use on any kinds of size of cans (bottles) such as PET, PE, Tetra pack, it’s easy to change the mold and do not need other machines. This machine shapes the trays automatically and closes their bottom flap with hot melt. Each individual machine parts in terms of user-friendliness and stability when it comes to feed and changeover.
FEATURES
- Programmable Logic Controllers.
- Comprehensible and user-friendly HMI
- 3-level Password protection
- Versatility in running many bottle formats and sizes on same machine Capable of handling rounds, cylinders, jars, ovals, squares, rectangles, trigger sprays and other odd shaped bottles.
- Machine designed entirely with stainless steel
- Easy control and low operating cost.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH
Tray Packer cum Shrink Wrapper
Description
The machine is designed for tray packing cum shrink wrapping, suitable for use on any kinds of size of cans (bottles) such as PET, PE, Tetra pack, it’s easy to change the mold and do not need other machines. This machine shapes the trays automatically and closes their bottom flap with hot melt. Each individual machine parts in terms of user-friendliness and stability when it comes to feed and changeover.
FEATURES
- Specially designed for the full automatic packaging production line of beer, pure water, fruit juice, dairy products, etc.
- With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cutting, shrinking, cooling and shaping etc.
- Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.
- The quick seal cooling structure guarantees that the seal has a higher strength even if under high-speed production condition.
- Equipped with PLC automatic program circulation control with stable and reliable performance.
- The original imported guide bar cylinder guarantees correct operation and durable operation.
- The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss.
- All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
- Unique thermal passage with centrifugal thermal air circulation system that has an equal heat
OUTPUT
Upto 24000 BPH
Carton / Case Erectors
FEATURES
- Programmable logical controllers.
- Comprehensible and user-friendly HMI.
- 3-level Password protection.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH
Description

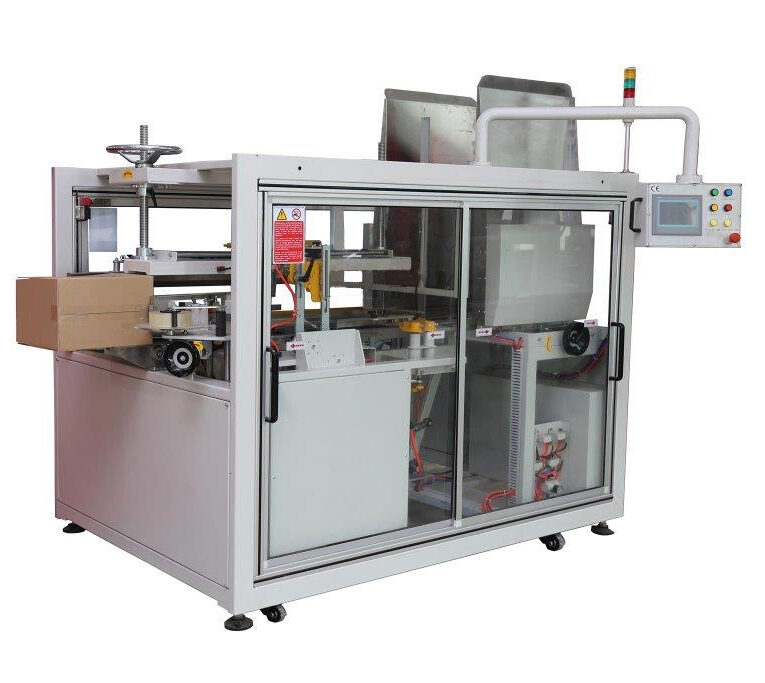

A carton erector is a machine which is used for erecting the flattened cartons placed inside a carton magazine. When in operation through pneumatic action the flattened cartons are sucked and picked up. Once picked the picking arm stretches in opposite direction to that of holding cartons and forms the carton into the shape of an open box. It can be:
- Automatic
- Semi-automatic
Description
A carton erector is a machine which is used for erecting the flattened cartons placed inside a carton magazine. When in operation through pneumatic action the flattened cartons are sucked and picked up. Once picked the picking arm stretches in opposite direction to that of holding cartons and forms the carton into the shape of an open box. It can be:
- Automatic
- Semi-automatic
FEATURES
- Programmable logical controllers.
- Comprehensible and user-friendly HMI.
- 3-level Password protection.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH
Carton / Case Packers
Description
PickMatic-PM

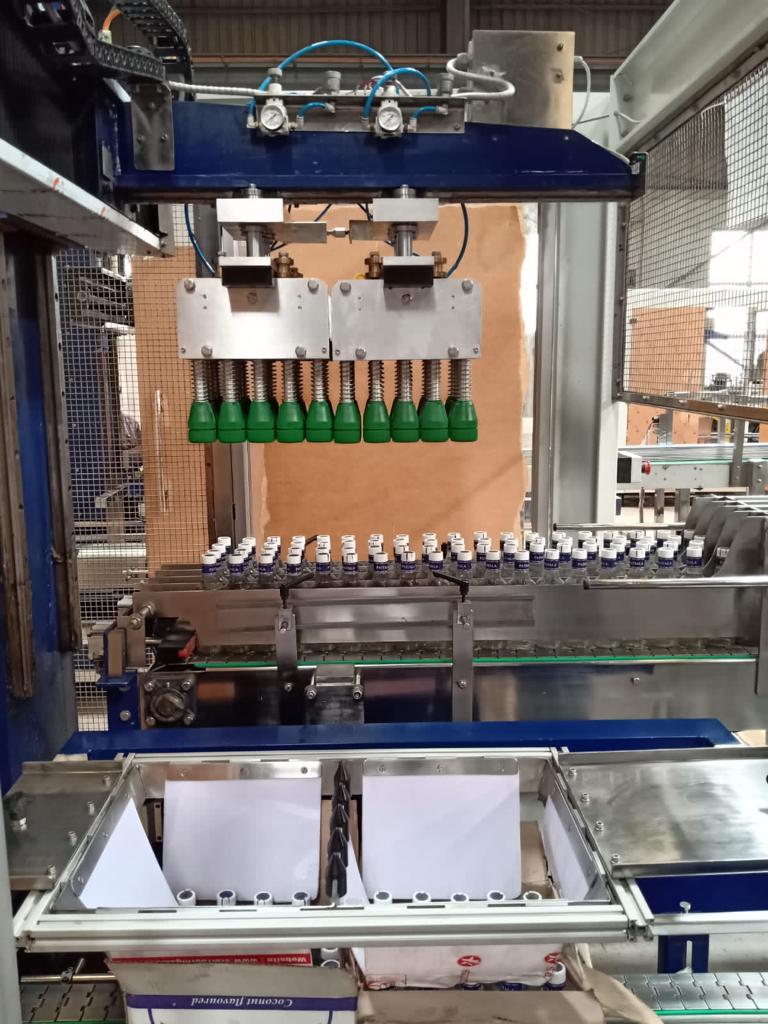

The case packers are designed and manufactured to pick-up finished bottles from conveyor with the help of bellow heads and drop& place the finished product in carton. The operation begins with the feeding of finished bottles through slat conveyor from where equal numbers of bottles are divided into different conveyor railing/ slot numbers through Divider, from where bottles are picked up with bellow heads which are pneumatically controlled and the Up-Down movement of bellow heads is brought about by the help of servo motor. The slides on which the bottle picking heads are mounted, is attached with a chain, sprocket and required standard weight for providing the balancing action of loads of the product on machine. The bottles are placed in cartons with the help of Forward-Reverse movement of bellow heads which is controlled with servo motor and slides.
FEATURES
- Programmable logical controllers.
- Comprehensible and user-friendly HMI.
- 3-level Password protection.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH
Carton Sealers
FEATURES
- Machine designed entirely with stainless steel.
- Floor level access to all machine parts.
- Manpower Saving: needs only 2 persons to operate.
- Easy control and low operating cost.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH
Description

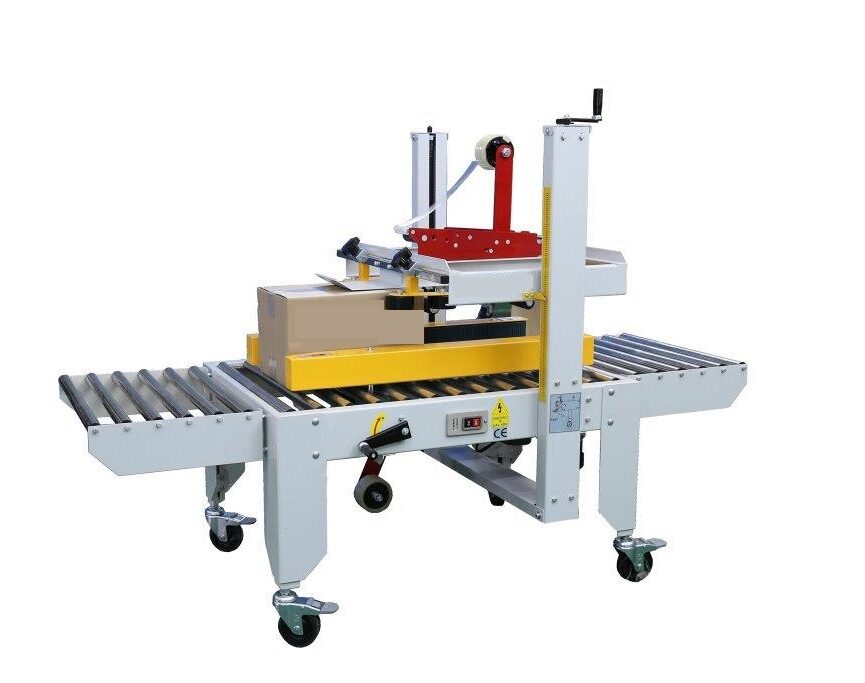

The cartons leaving the carton erector pass through the tape application head in a carton sealer which puts tape on one side of the open cartons and closes it to form a one-sided open carton which is then fed into the case packer for further operation. These can be sealed from:
- Top
- Top and bottom
Description
The cartons leaving the carton erector pass through the tape application head in a carton sealer which puts tape on one side of the open cartons and closes it to form a one-sided open carton which is then fed into the case packer for further operation. These can be sealed from:
- Top
- Top and bottom
FEATURES
- Machine designed entirely with stainless steel.
- Floor level access to all machine parts.
- Manpower Saving: needs only 2 persons to operate.
- Easy control and low operating cost.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH
Wrapgen (Wrap Around Case Packer)
Description
WrapGen-WG

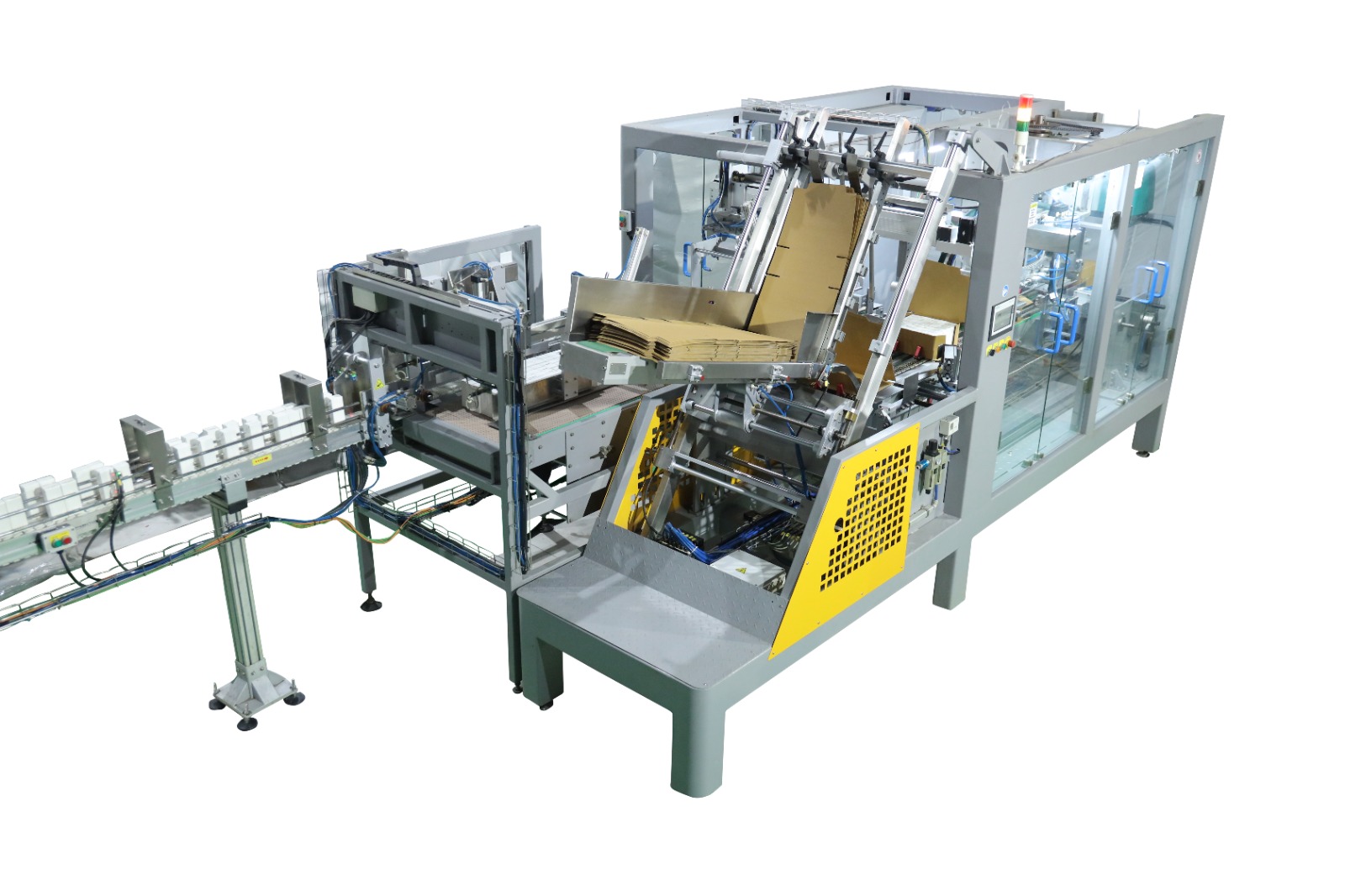

A wraparound case packer is a sophisticated packaging machine designed to automate the process of loading products into corrugated cardboard cases or cartons. This type of machine efficiently forms, loads, and seals cases around products, streamlining the packaging process in various industries such as food and beverages, consumer goods, pharmaceuticals, and more.
FEATURES
- Programmable logical controllers.
- Comprehensible and user-friendly HMI.
- 3-level Password protection.
- Robust, durable construction for long-lasting performance.
OUTPUT
Upto 24000 BPH
